ICS-14A electronic belt scale
The ICS-14A electronic belt scale is a high-precision electronic belt scale with four rollers and full suspension. It has four weighing sensors, no ear pivot points or moving parts, and a lighter weight. When weighing, it is basically not affected by its own mechanical structure, and the accuracy can reach up to 0.25%. Widely used in situations that require trade settlement or high measurement accuracy, it can meet the needs of trade settlement.
Performance Characteristics
Higher precision
Four weighing sensors directly transmit force, and a four roller fully suspended scale frame eliminates errors caused by the fulcrum, with an accuracy of up to 0.25%.
Stable operation
No ear pivot and moving parts, lighter weight, basically unaffected by its own mechanical structure, rectangular steel structure, uniform force distribution.
Less maintenance
No ear pivot and moving parts, made of carbon steel material that does not wear out, rectangular steel structure that does not deform, requires minimal maintenance, and has low maintenance costs.
Excellent quality
Selected materials for weighing frames and components, lean production process, imported weighing sensors, patented speed sensors, stable and durable.
Product Composition

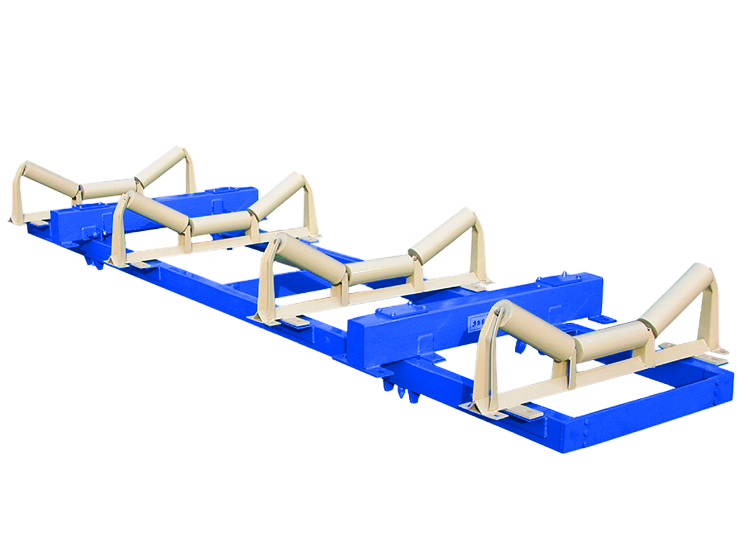

ICS-14A weighing bridge
The scale body adopts a four roller fully suspended weighing structure, which is not affected by various lateral and horizontal forces other than non vertical forces (including roller friction, horizontal force components of belt and material operation), reducing boundary effect errors, and achieving faster and more accurate vertical force induction for symmetrical weight measurement.
Touch screen weighing instrument
The belt scale instrument adopts 32-bit 180MHz high-speed operation processing to ensure stable operation and calculation accuracy, and a 16 bit DA converter ensures more accurate 4-20mA output. This machine has a large capacity storage space, and its storage capacity can be queried for daily/monthly historical data storage and query functions. The data storage adopts FLASH mode, which can automatically save various process data when the system is powered off. After powering on again, the system will continue to run on the data.
Digital weighing sensor
The independently developed industrial grade digital weighing sensor enhances the dynamic digital filtering function and adds linear compensation function on the basis of the original generation of digital sensors, overcoming the disadvantages of traditional sensors such as small output signal, short transmission distance, and poor anti-interference ability, making the data during dynamic weighing process more authentic, stable, and reliable.
Speed encoder
The double-sided rubber coating effectively prevents the belt from slipping, and the carbon steel shell has good mechanical strength, shielding and sealing properties suitable for outdoor installation. The brushless DC pulse generator does not require adjustment, calibration or maintenance, and the coaxial connection structure more effectively ensures speed measurement accuracy and greatly improves the service life of the equipment.
Working Principle
-
Generate signal
The weighing bridge is installed on the conveyor frame. When the material passes by, the measuring roller detects the weight of the material on the belt conveyor and acts on the weighing sensor through a lever, generating a voltage signal proportional to the belt load.
-
Speed calculation
The speed sensor is directly connected to the large-diameter speed measuring drum, providing a series of pulses, each pulse representing a belt movement unit, and the frequency of the pulses is proportional to the belt speed.
-
Calculation results
The weighing instrument receives signals from the weighing sensor and speed sensor, integrates them to obtain an instantaneous flow rate value and a cumulative weight value, and displays them separately.
Related PRODUCTS
Product Parameter
| 型 号 | 校验精度 | 动态精度 | 皮带机倾角 | 称重传感器 | 速度传感器 | 称重桥架 | 计量托辊 |
| ICS-14A | ≤±0.125% | ±0.5% | ≤6° | 四只 | 一只 | 悬浮式 | 四组 |
| ICS-17A | ≤±0.25% | ±0.5% | ≤17° | 两只 | 一只 | 双杠杆 | 四组 |
| FSD-M1 | ≤±0.25% | ±0.3% | ≤17° | 四只 | 一只 | 全悬浮 | 二组 |
| FSD-M2 | ≤±0.2% | ±0.25% | ≤17° | 八只 | 一只 | 全悬浮 | 四组 |
| FSD-M4 | ≤±0.125% | ±0.2% | ≤17° | 十六只 | 一只 | 全悬浮 | 八组 |
