Double tube spiral quantitative feeder

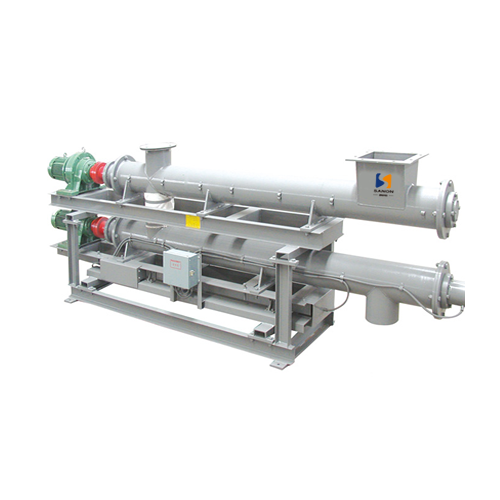

The double tube spiral weighing feeder is also a dynamic measuring instrument suitable for conveying powdered, granular or small materials. Unlike the single tube spiral scale, the double tube spiral scale has a two-layer structure, with the upper layer mainly responsible for stabilizing flow and conveying, and the lower layer mainly responsible for dynamic measurement. The stable flow effect is good and space saving, and the process layout is flexible, easy to install, disassemble and move. Widely used in industries such as cement, feed, chemical, food, medicine, papermaking, and environmental protection.
Performance Characteristics
High Precision Weighing Technology
Unique CS high-end weighing technology greatly improves measurement accuracy, with calibration accuracy ≤ 0.5% and actual usage accuracy ≤ 1%.
Precision Manufacturing Process
Accurate ultra precision equipment manufacturing technology, long-term use without deformation sealing structure effectively prevents dust from flying out and extends service life.
Leading Stable Flow Technology
Unique steady flow structure, uniform material transportation without arching, and synchronous speed regulation of the upper and lower layers of the feeding metering screw.
Leading Stable Flow Technology
Imported pull type weighing sensors work directly, with more stable signal output, more accurate weight signals, and more precise measurements.
Product Composition
Weighing Body
Upper level steady flow conveying, lower level metering conveying. Precision manufacturing, long-term use without deformation. Sealed structure to avoid material waste.
Control Cabinet
our control cabinets come with power outage protection - they'll automatically pick up right where they left off when power returns. You can remotely monitor real-time data through the system . Plus, we've got massive storage capacity - check daily or monthly data anytime you need. Makes management way easier.
digital sensors
Our load cells feature digital sensing tech with built-in noise resistance and lightning-fast readings. The auto-range calibration cuts measurement errors big time. IP65-rated protection keeps them running smooth even in nasty conditions.
Speed sensor
Speed sensors with cast aluminum armor thrive outdoors – rain or shine. Brushless DC pulse generator design = zero upkeep.
Working Principle
The material is transported by a screw conveyor from the feeding port to the measuring cutter connected below, and the fully weighed weight of the measuring screw is sent to the controller through three tension sensors installed on the measuring cutter as a voltage signal proportional to the weighing load, along with the preset cutter speed data (when measuring with double pipes, the measuring cutter runs at a constant speed to advance the material, that is, the speed signal is the design value of the measuring cutter).
At this time, the weight and speed signals are calculated to obtain the instantaneous flow rate and cumulative weight value. The control system of the spiral quantitative feeding scale compares the actual flow rate signal with the set flow rate signal, and outputs the control signal to the frequency converter through PID adjustment. The speed of the feeding cutter is dynamically adjusted to achieve quantitative feeding.
