【Performance Characteristics】

1.More Reliable Operational Performance:

Equipped with a high-performance 300 series CPU, ensuring stable and reliable performance. Even if the connection with the main control box is interrupted, it does not affect local manual or automatic control.

2.More Flexible Control Methods:

Operation can be performed via the control panel, host computer, or buttons on the control box. Multiple operation methods allow for flexible control of the controlled devices.

3.Richer Interface Options:

Integrated with an RS485 communication interface for communication with devices equipped with RS485 interfaces; also includes 2 optical Ethernet signals, 2 electrical Ethernet signal interfaces for network communication, boasting rich interfaces and high communication efficiency.

4.Enhanced Anti-Interference Capability:

The communication remote drive module communicates with external devices using technologies such as high-speed optocoupler isolation and power supply isolation, increasing communication distance and improving anti-interference capability.

【Working Principle】

The external power supply AC660V provides power to the control box. The intrinsically safe power supply outputs DC18V (intrinsically safe) and DC12V (intrinsically safe) for system switch collection and communication isolation power. After passing through the optocoupler isolation board for safety isolation between intrinsically safe and non-intrinsically safe circuits, the intrinsically safe signals are collected and processed by the control box, which then outputs corresponding control signals to achieve device monitoring, control, and protection. The control box communicates with the computer via Ethernet to display device operational information and facilitate fault inquiry.

【Product Parameters】

A.Explosion-proof Type:

a)Mining Explosion-proof and Intrinsically Safe;

b)Explosion-proof Mark: "Ex db [ib Mb]Ⅰ Mb"

B.Structural Features:

a)Dimensions (L×W×H): 1045mm × 805mm × 720mm;

b)Weight: Approximately 420kg

C.Power Supply:

a)Rated Operating Voltage: AC660V;

b)Input Apparent Power: ≤200VA

D.Input/Output Signals:

a)32-channel passive contact signal input (intrinsically safe)

b)16-channel passive contact signal output (intrinsically safe)

c)2-channel current analog signal input (intrinsically safe)

d)16-channel relay output (non-intrinsically safe)

e)5-channel PT100 analog signal input (non-intrinsically safe)

f)8-channel current analog signal input (non-intrinsically safe)

E.Ethernet Optical Signal Interface:

a) Number of Interfaces: 2

b) Transmission Mode: TCP/IP Ethernet optical signal transmission

c) Interface Type: SC

d) Transmission Rate: 100Mbps

e) Optical Transmit Power: (-15~0)dBm (single-mode dual-fiber, wavelength: 1310nm)

f) Receiver Sensitivity: ≤-25dBm (single-mode dual-fiber, wavelength: 1310nm)

g) Maximum Transmission Distance: 10km

F.Ethernet Electrical Signal Interface (Intrinsically Safe):

a) Number of Interfaces: 2

b) Transmission Mode: Full-duplex, TCP/IP Ethernet electrical signal transmission

c) Transmission Rate: 100Mbps

d) Signal Voltage Peak-to-Peak: ≤5V

e) Maximum Transmission Distance: 50m

G.RS485 Signal Interface (Intrinsically Safe):

a) Number: 1

b) Transmission Mode: Half-duplex, bipolar

c) Transmission Rate: 9600 bps

d) Signal Operating Voltage Peak-to-Peak: 2V~12V

e) Maximum Transmission Distance: 2km

H.Functions:

a) The control box features 5 independent intrinsically safe power supply outputs with voltage limiting, current limiting, and short-circuit protection functions.

b) It supports intrinsically safe analog signal input, intrinsically safe switch signal input/output, non-intrinsically safe relay signal output, and non-intrinsically safe analog signal input.

c) The control box is equipped with 2 Ethernet optical signal interfaces, 2 Ethernet electrical signal interfaces, and 1 RS485 signal interface.

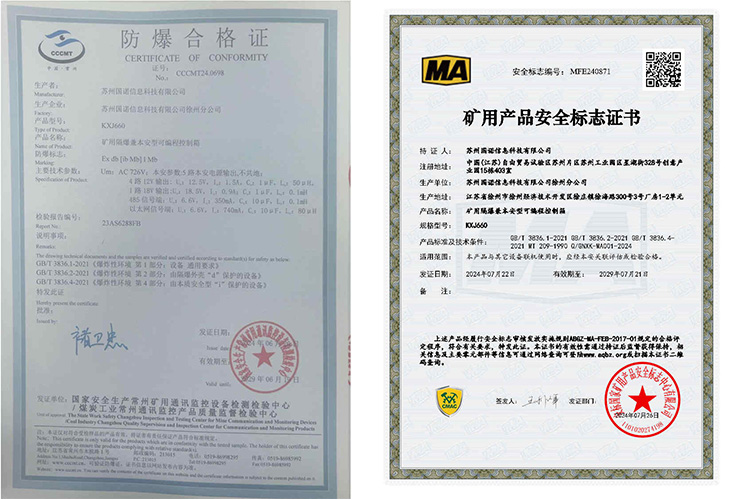

【Product Qualifications】
